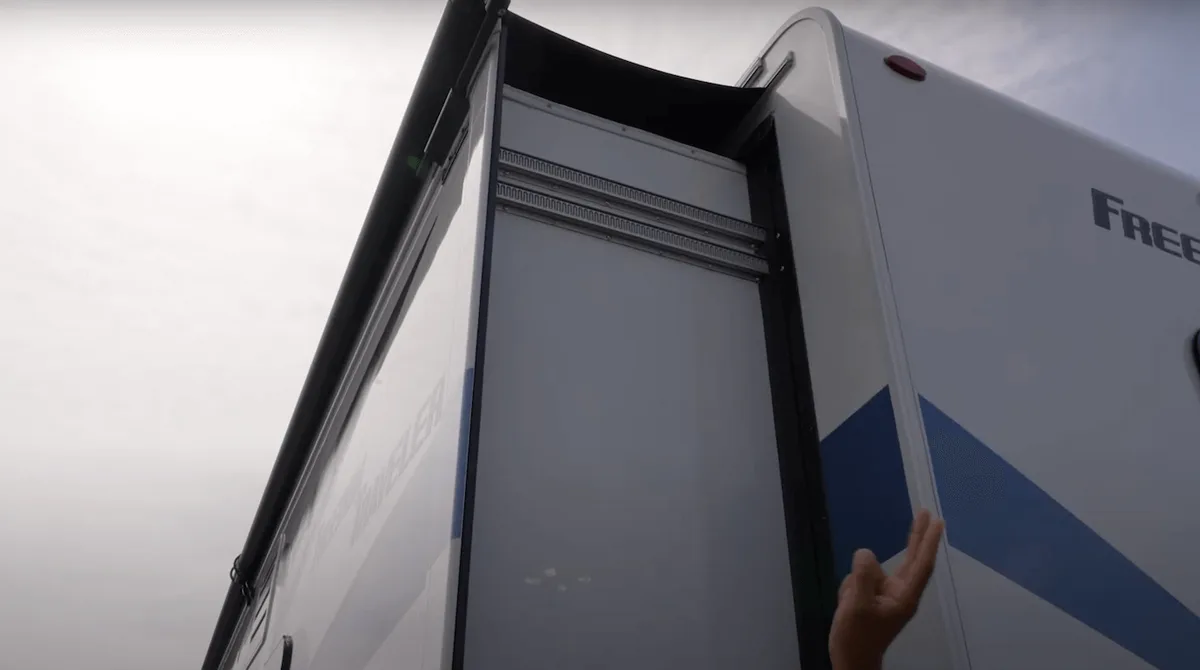

RV Slide-Out Seal & Alignment
Leaking seals, crooked slides, water damage prevention. We'll seal it tight and get it tracking straight.
Slide-out seals keep water, bugs, and weather outside your RV. When they crack, flatten, or deteriorate (typically after 4 to 6 years in Florida), water gets in and causes damage that costs far more than a seal replacement. Seal replacement runs $150 to $800 depending on type and coverage. Alignment adjustment is $125 to $250. Scott handles both on-site across Jensen Beach. Call 772-356-0328.
Seals and alignment: the first line of defense against water damage
Slide-out seals don't get much attention until they fail. They're just rubber strips around the perimeter of your slide-out, right? But those rubber strips are the only thing standing between Florida's tropical downpours and the inside of your RV. When seals deteriorate and the slide is even slightly misaligned, water finds its way in. And in Jensen Beach, it doesn't take long for water intrusion to turn into mold, delamination, and structural rot.
Scott Marlins has been replacing slide-out seals and adjusting alignment across Martin County for over 10 years. He's completed more than 3,200 repairs, and a significant portion of them involve some form of seal or alignment work. Here's everything you need to know about keeping your slide-outs sealed and tracking straight.
Types of slide-out seals
Your slide-out uses multiple seal types, each designed for a specific location and function:
Wiper seals. These are flat, flexible rubber strips mounted to the RV body around the slide-out opening. As the slide moves in and out, the wiper seal drags across the slide's exterior surface, wiping away water, dirt, and debris. They're typically found along the top and sides of the opening. Wiper seals take the most abuse because they're constantly in contact with the moving slide surface.
Bulb seals. These have a rounded or D-shaped cross section that compresses against the slide when it's retracted. They create a weather-tight seal by maintaining constant pressure between the slide wall and the RV body. Bulb seals are common along the bottom of the slide opening and sometimes on the sides. They need enough "compression" to seal properly but not so much that they create excessive friction against the motor.
Flange seals. These mount to the exterior flange that frames the slide-out opening on the outside of the RV. They overlap the edge of the slide room when it's extended, preventing water from running into the gap between the slide and the RV body during rain. Flange seals are often the first ones to fail because they're fully exposed to UV, rain, and the elements.
Why seals fail faster in Florida
Florida is a seal killer. Here's what's working against your slide-out seals in Jensen Beach:
- UV radiation degrades rubber compounds, causing cracking and hardening (Florida gets 25% to 30% more UV than northern states)
- Ozone, which is higher in coastal areas, breaks down the molecular structure of rubber
- Heat causes rubber to expand during the day and contract at night, accelerating fatigue
- Humidity and salt air promote surface degradation and reduce seal life by 2 to 3 years compared to arid climates
- Heavy rainfall tests seal integrity regularly, and any small gap becomes a leak path
In a northern climate, slide-out seals typically last 7 to 10 years. In Jensen Beach, expect 4 to 6 years before they need replacement. Regular conditioning with a rubber protectant (every 3 to 6 months) can push that toward the higher end of the range.
Slide-out alignment: why it matters
Even perfect seals won't protect your RV if the slide-out is misaligned. A slide that's even 1/4 inch off creates an uneven gap where seals can't make proper contact. Misalignment puts extra stress on the mechanism (leading to motor and gear failures), causes uneven seal wear, and creates leak points that are hard to seal without fixing the underlying alignment issue first.
Common causes of misalignment include:
- Worn guide rollers that allow the slide to drift off-track
- Loose or damaged slide rails
- Uneven weight distribution in the slide room (heavy furniture on one side)
- Frame flex from an unlevel RV
- Normal settling and wear over thousands of in-out cycles
- Worn gear mechanisms that don't drive the slide evenly
How we handle seal replacement
Scott's approach to seal replacement follows a specific process designed to get the best results:
- Inspect the entire slide-out perimeter with the slide both extended and retracted
- Identify which seals are failing and where water is getting in
- Check alignment before replacing seals (there's no point installing new seals on a misaligned slide)
- Remove the old seal material completely, including adhesive residue
- Clean and prep the mounting surface
- Install new seals with the correct adhesive and mounting method for the seal type
- Test the slide through multiple full cycles to verify seal contact and proper compression
- Perform a water test if the original complaint was a leak
Alignment adjustment process
When the slide needs realignment, Scott adjusts the following components (depending on your slide mechanism type):
- Guide roller positions (shimming or repositioning to center the slide in the opening)
- Rail height adjustment (to level the slide and eliminate racking)
- Support bracket tightening (loose brackets are one of the most common alignment issues)
- Motor synchronization on dual-motor systems (ensuring both sides travel at the same speed)
- Stop bolt adjustment (setting the fully retracted position so the slide seats properly against the seals)
Most alignment jobs take 1 to 2 hours and can be done at your location. If worn components need replacement (rollers, guides, brackets), Scott has the most common parts available for same-day completion.
The cost of ignoring bad seals
Seal replacement costs $150 to $800. Water damage repair from failed seals can cost $2,000 to $10,000. The math is straightforward, but Scott still sees RV owners who put off seal replacement until it's too late. Water that gets past bad seals runs down inside the walls, soaks into the wood framing, and creates the perfect environment for mold growth. In Florida's humidity, mold can establish itself within 48 hours of water intrusion. Once it's in the wall cavity, you're looking at wall panel removal, framing replacement, and mold remediation.
The bottom line: inspect your seals annually, replace them when they show signs of deterioration, and address alignment issues before they cause secondary damage. Call 772-356-0328 to schedule a seal inspection anywhere in Jensen Beach, Stuart, Palm City, Hobe Sound, Port Salerno, Sewalls Point, Indiantown, or Rio.
Slide-Out Seal & Alignment Questions
How much does slide-out seal replacement cost?
Seal replacement costs vary by type and amount needed. Wiper seal replacement runs $150 to $350 per side depending on the seal profile and length. Bulb seal replacement costs $200 to $400. A full seal job (all four sides plus corners) typically runs $400 to $800. Alignment adjustment without seal replacement is $125 to $250. We'll inspect your seals and give you a firm quote before starting.
How do I know if my slide-out seals need replacing?
Look for visible cracking, hardening, or chunks missing from the seal rubber. Check for daylight visible between the seal and the slide-out wall when the slide is retracted. Water stains or moisture inside the RV around the slide-out perimeter are a clear sign. If the seals are flattened (they don't spring back when pressed) or have lost their flexibility, they're not doing their job anymore.
Why is water leaking around my slide-out?
Water leaks around slide-outs are caused by worn or damaged seals (the most common reason), slide-out misalignment (where the slide doesn't sit flush against the seals when retracted), deteriorated slide-out flange sealant, or a combination of these. In Jensen Beach's rain-heavy climate, even small seal gaps let in significant water. We'll inspect the entire perimeter to find exactly where the water is getting in.
What causes slide-out misalignment?
The most common causes are worn slide mechanism components (rollers, guides, or rails), uneven weight distribution inside the slide room, frame flex from an unlevel RV, and normal settling over years of use. Misalignment gets worse over time because a slightly crooked slide puts extra stress on the mechanism, which causes more wear, which makes the alignment worse. Catching it early saves money.
How often should slide-out seals be replaced?
In Florida's climate, slide-out seals typically last 4 to 6 years before they need replacement. UV exposure, heat, and ozone break down the rubber compound over time. Regular treatment with a rubber seal conditioner (applied every 3 to 6 months) can extend their life, but eventually all seals need replacing. We recommend a seal inspection at least once a year.
Can you fix slide-out alignment at my location?
Yes. Slide-out alignment is done on-site. Scott adjusts the guide rollers, rail positions, and support brackets to bring the slide back into proper alignment. Most alignment jobs take 1 to 2 hours. If the misalignment is caused by worn components that need replacement, that adds time and parts cost, but it's all done at your location.
What types of slide-out seals are there?
There are three main types: wiper seals (flat rubber strips that wipe against the slide as it moves, found on the top and sides), bulb seals (round or D-shaped seals that compress against the slide to create a weather barrier, found on the bottom and sometimes sides), and flange seals (a combination that mounts to the exterior flange around the slide opening). Each type has a different replacement process and cost.
Will misalignment damage my slide-out motor?
Yes. A misaligned slide creates uneven resistance that forces the motor to work harder on one side than the other. This increases current draw, generates excess heat, and accelerates motor wear. Many of the slide-out motor failures we see are actually caused by alignment problems that went unaddressed. Fixing the alignment first protects the motor and extends its life.
Slide-out leaking or tracking crooked?
Same-day inspections available across Jensen Beach and Martin County. 3,200+ repairs completed.
